TA Air Cooler

TA Air Cooler

Product Introduction

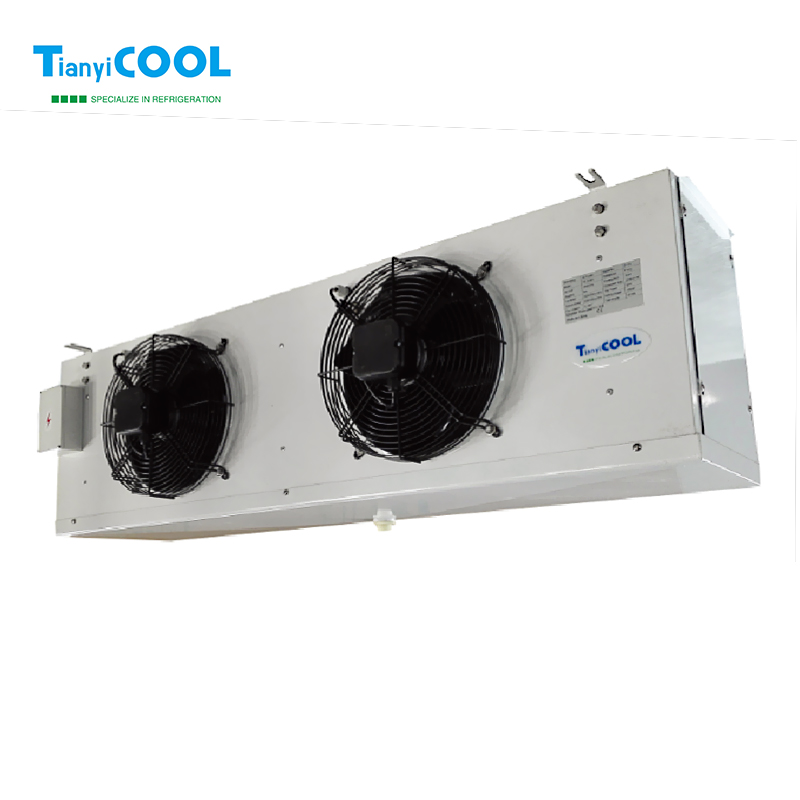

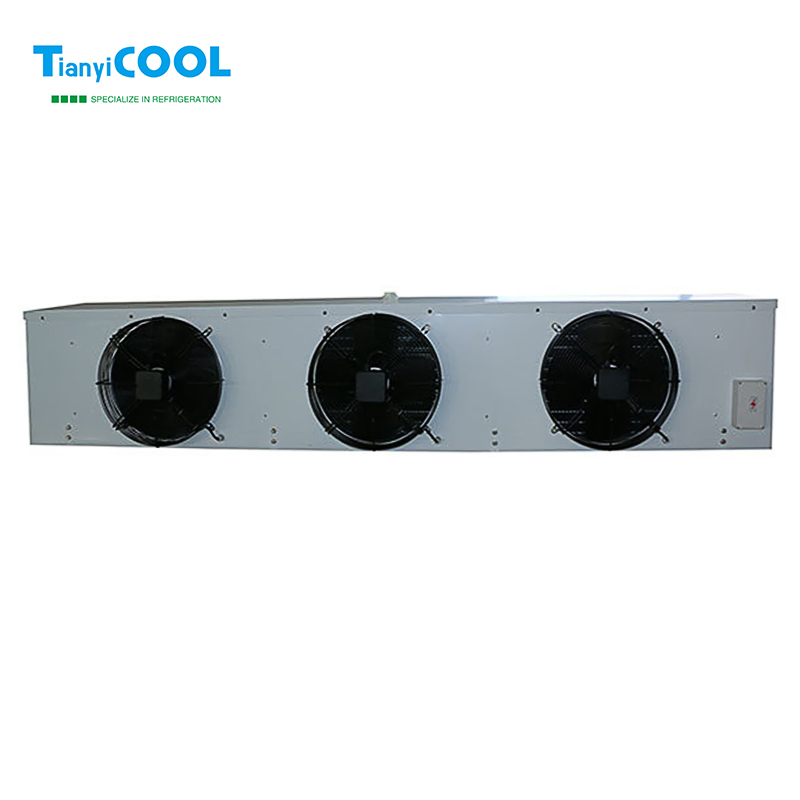

TA efficient unit coolers are suitable for small and medium-sized refrigeratories to store fresh and frozen products.The compact and reliable design enables customers to maximizes the utilization of storage space and meet customers' ultimate pursuit of temperature.

The heat exchangers use the high efficiency design ,12mm copper tube staggeredarrangement,sinusoidal fin of the imported Euripean unit coolers,which are applicable to the new generation refrigerant.

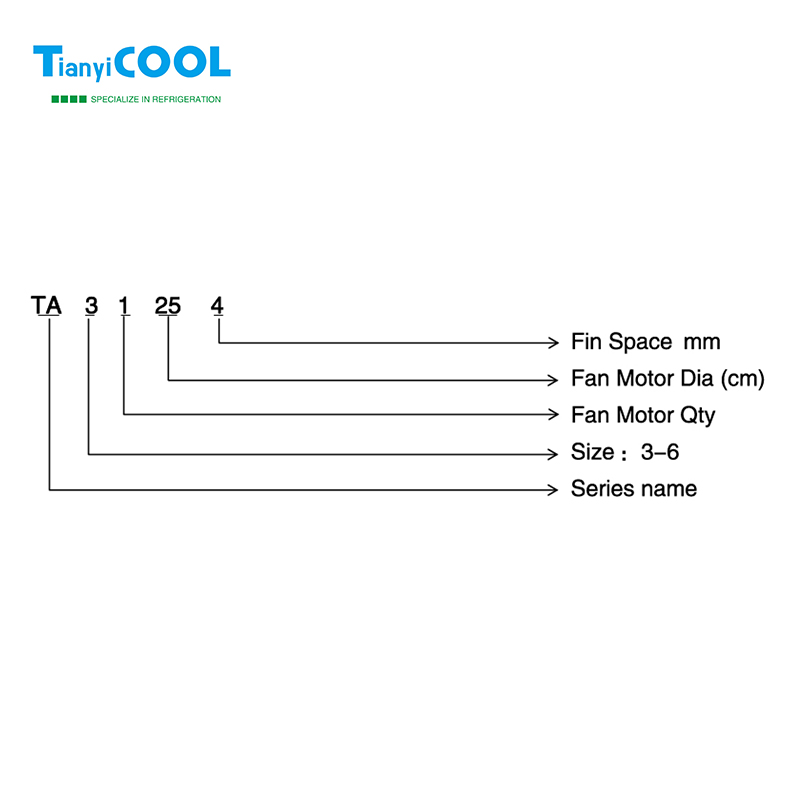

According to the refrigeratory conditions,this series of unit coolers are divided into the following three types:

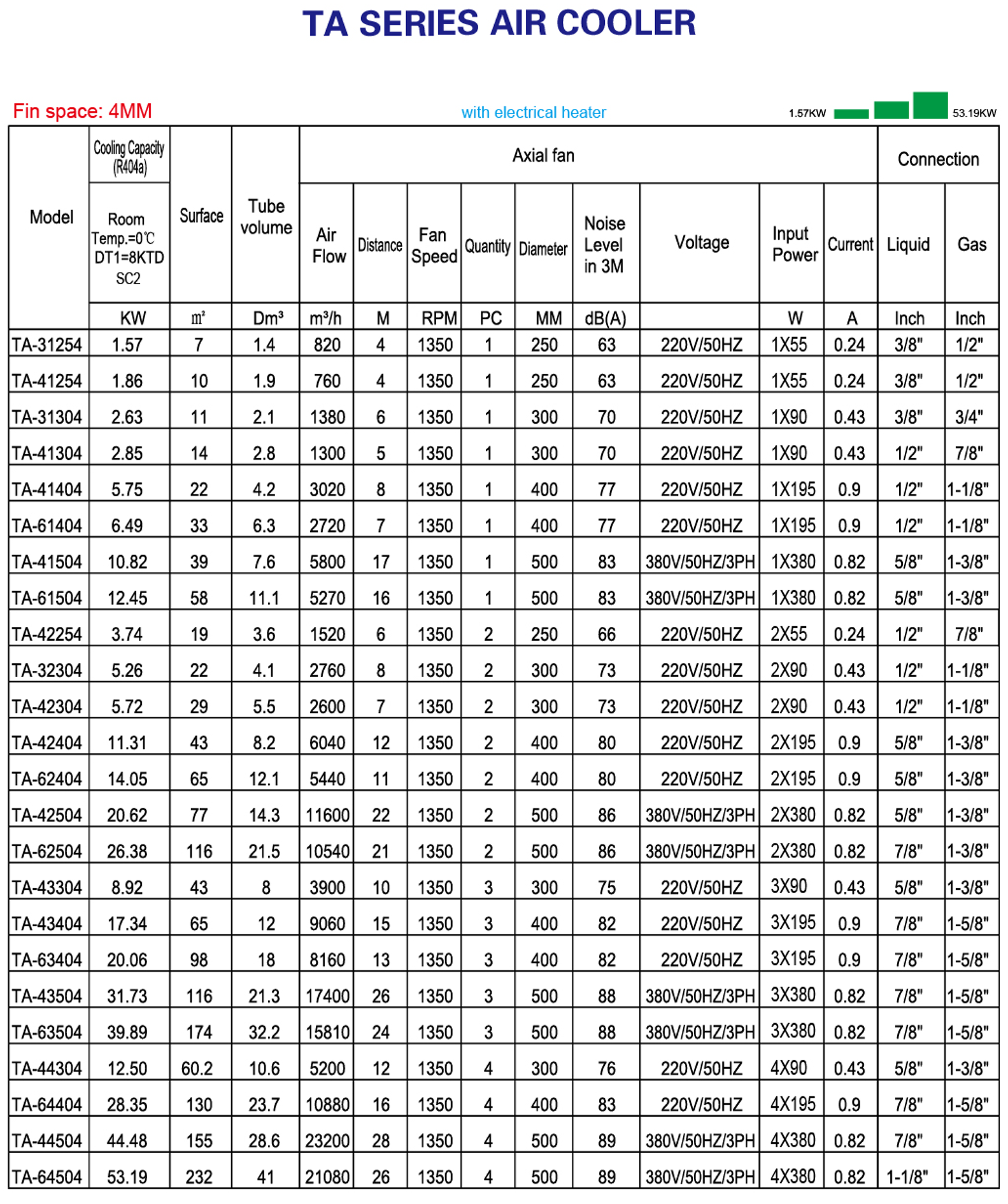

TA...4High temperature type(cold room 0℃ ) ，fan spacing of 4mm

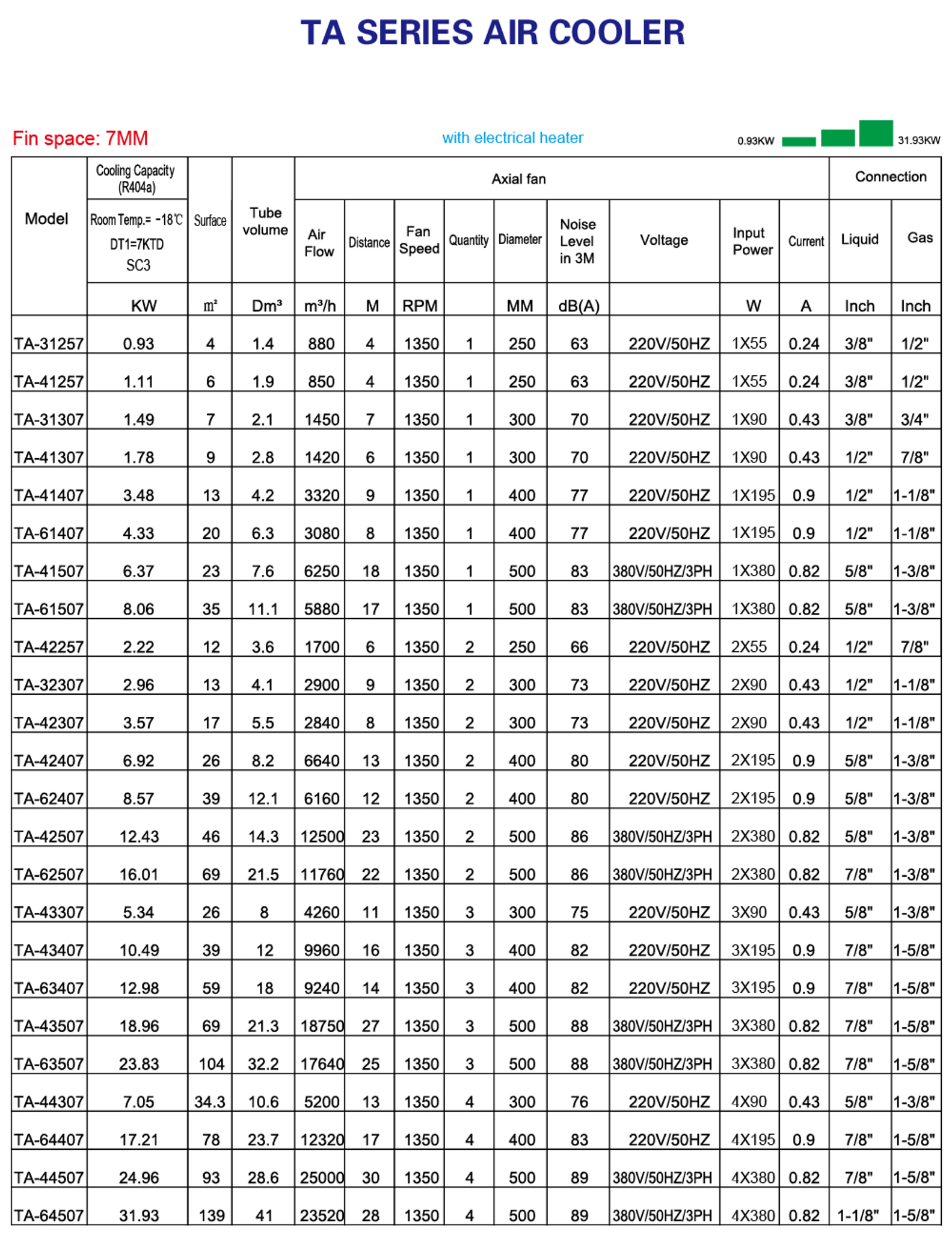

TA...7 Medium temperature type(cold room -18℃)，fan spacing of 7mm

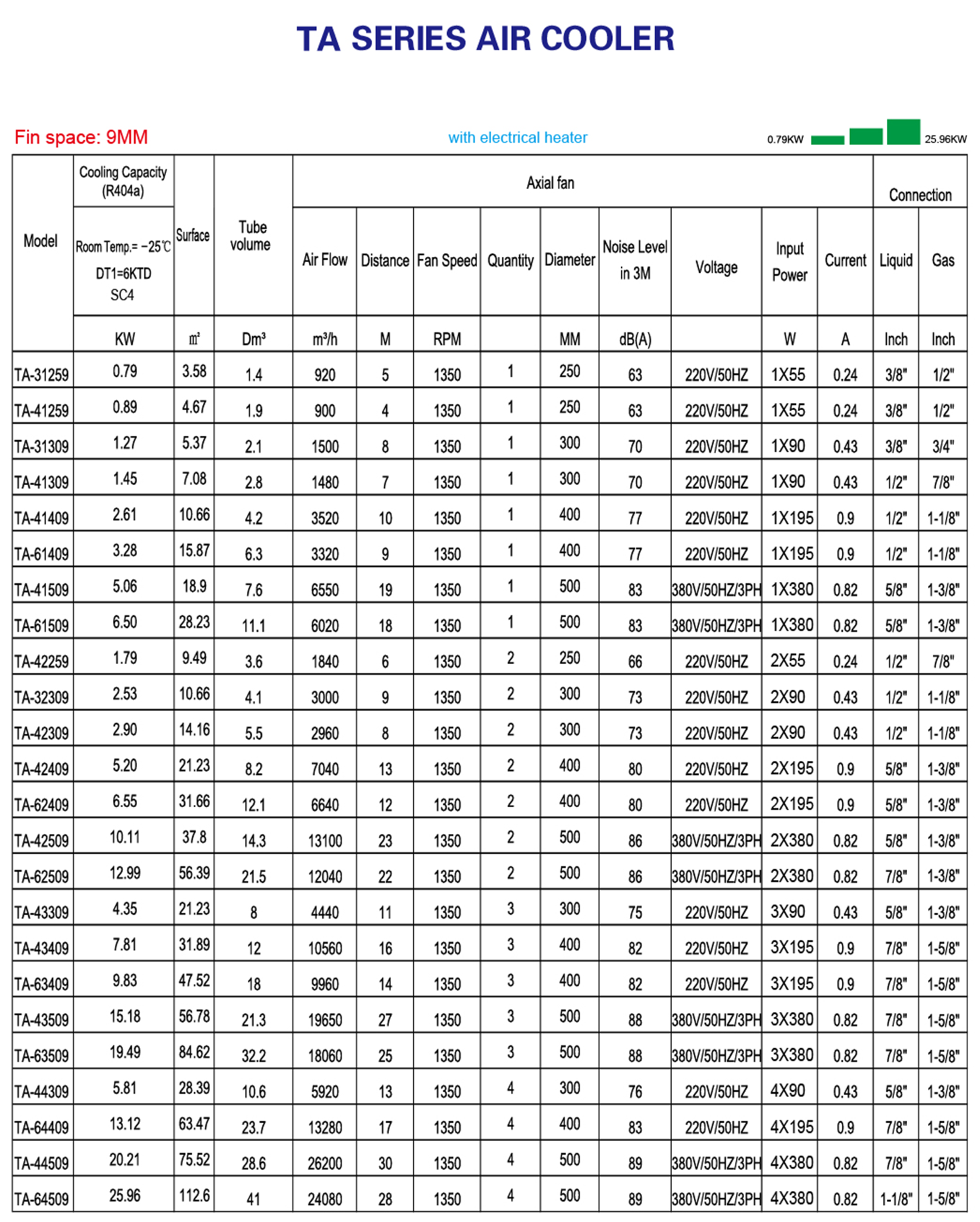

TA...9Low temperature type(cold room -25℃)，fan spacing of 9mm

Product Features

Product Feature 1

This series uses fans with the diameters from 250-500mm.The standard fan has the following features,IP45 protection grade,Finsulation grade,built-in thermal protection,operating temperature:-40℃~+40℃.

Product Feature 2

The product is equipped with transport installation feet to facilitate on-site lifting.We can customize the coil based on customer needs,use other deforsting methods and configure fans of different specifications.
