Fresh Water Flake Ice Machine

Product Introduction

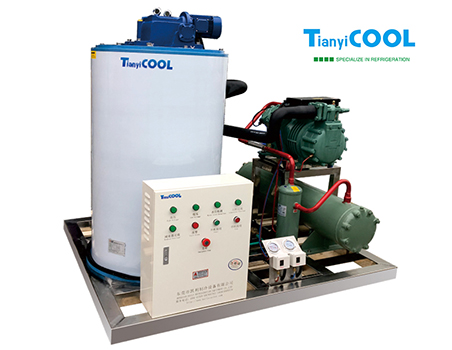

Small-sized flake ice machine

Compressor:hermetic scroll compressor
Evaporator:Efficient heat-exchanging alloy tank
Condenser:High-efficient air cooling finned condenser
Expansion valve:ALCO(TIseries)
Refrigerant:Environmental R404A
Controller:LG PLC
Power supply:3 N/380V/50Hz
Water supply:Diameter 1/2 ″, Pressure 0.15 -0.5 MPa

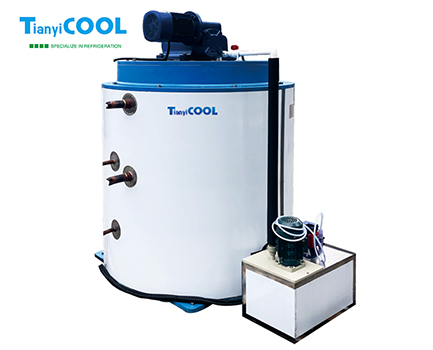

Small-sized flake ice evaporator

Evaporator tank: Efficient heat-exchanging alloy tank
Top and bottom base:Cast aluminium alloy/304 stainless steel
Reducer:KOKI (worm gear and worm wheel)
Ice blade:304 stainless steel spiral blade
Pump:Anti-corrosion vertical circulating water pump
Salt water pump: Anti-corrosion pulse-metering pump
Water tank:304 stainless steel insulated tank
Power supply:3 N/380V/50Hz
Water supply:Diameter 1/2 ", Pressure 0.15-0.5 Mpa

Medium-sized flake ice machine

Compressor:Bitzer Semi-hermetic reciprocating compressor
Evaporator:Efficient heat-exchanging alloy tank
Condenser:Horizontal shell and tube water cooling condenser
Expansion valve: Danfoss(TES series)
Refrigerant:Environmental R404A
Controller:LG PLC
Power supply:3N/380V/50Hz
Water supply:Diameter 1/2 ″ ,Pressure 0 . 15-0 . 5Mpa

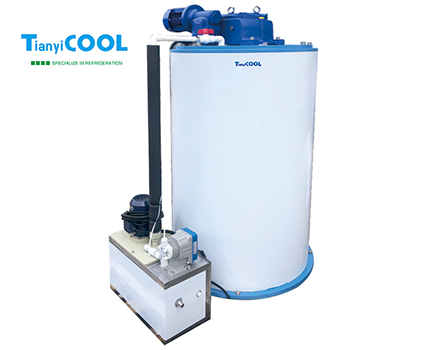

Medium-sized flake ice evaporator

Evaporator tank: Efficient heat-exchanging alloy tank
Top and Bottom base:Cast aluminium alloy/304 stainless steel
Reducer:KOKI (worm gear and worm wheel)
Ice blade:304 stainless steel spiral blade
Pump:Anti-corrosion vertical circulating water pump
Salt water pump:Anti-corrosion pulse-metering pump
Water tank:304 stainless steel insulated tank
Power supply:3N/380V/50Hz
Water supply:Diameter 1/2 ″ ,Pressure 0 . 15-0 . 5Mpa

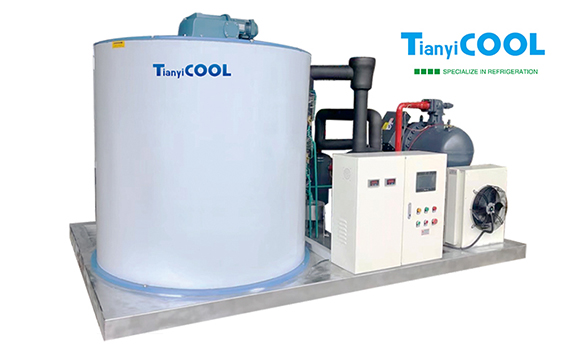

Large-sized flake ice machine

Compressor:Hanbell semi-hermetic screw compressor
Evaporator:Efficient heat-exchanging alloy thank
Condenser:horizontal shell and tube condenser
Expansion valve:Danfoss(TES series)
Refrigerant:Environmental R404A
Controller:LG PLC
Operating method:Touch screen operation
Power supply:3N/380V/50Hz
Water supply:Diameter 1/2 ″ ,Pressure 0 . 15-0 . 5Mpa

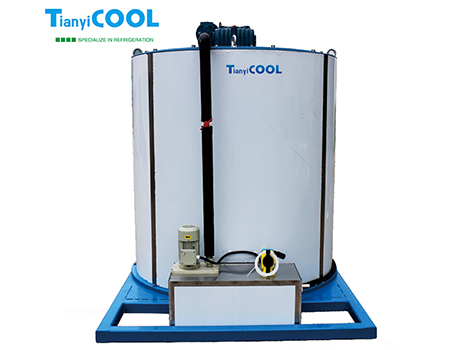

Large-sized flake ice evaporator

Evaporator tank:Efficient heat-exchanging alloy tank
Top and bottom base:Cast aluminium alloy/304 stainless steel
Reducer:KIKO (worm gear and worm wheel)
Ice blade:304 stainless steel spiral blade
Pump:Anti-corrosion vertical circulating water pump
Salt water pump:Anti-corrosion pulse-metering pump
Water tank:304 stainless steel insulated tank
Power supply:3N/380V/50HZ
Water supply:Diameter 1/2 ″ ,Pressure 0 . 15-0 . 5Mpa
