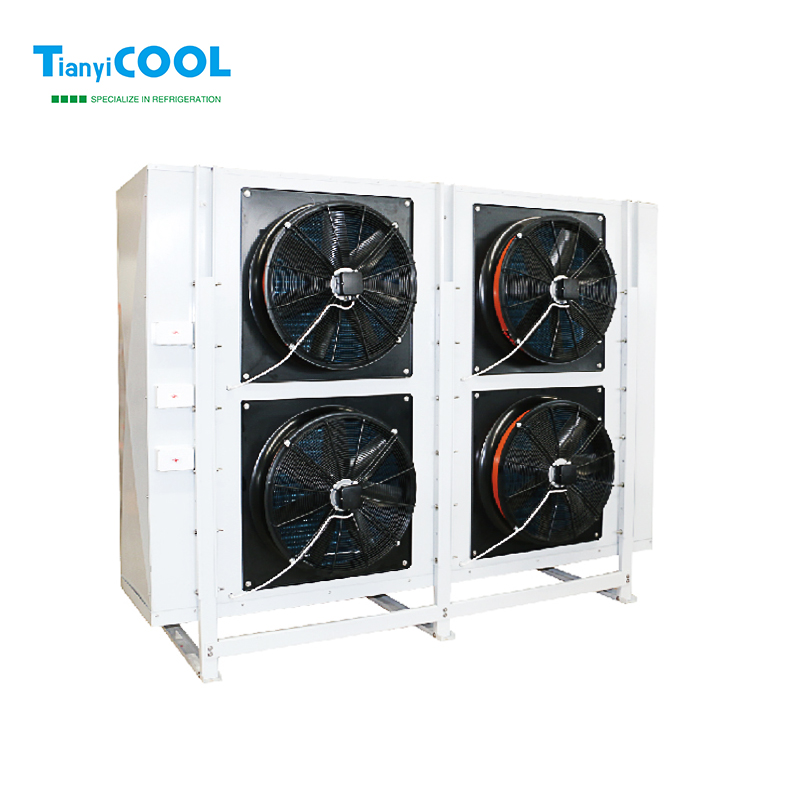

TSR Industrial Quick Freezing Air Cooler

Product Introduction

TSR series is an efficient quick cooling solution created by Keling Refrigeration for the food refrigeration industry.

It is specially designed for quick cooling/quick freezing rooms to meet the requirements of quick cooling, high stability and low energy consumption.

The product adopts modular floor-standing structure and adapts to various room sizes, which is an ideal choice for food processing, cold chain storage and other scenes.

Product Features

Efficient rapid cooling design

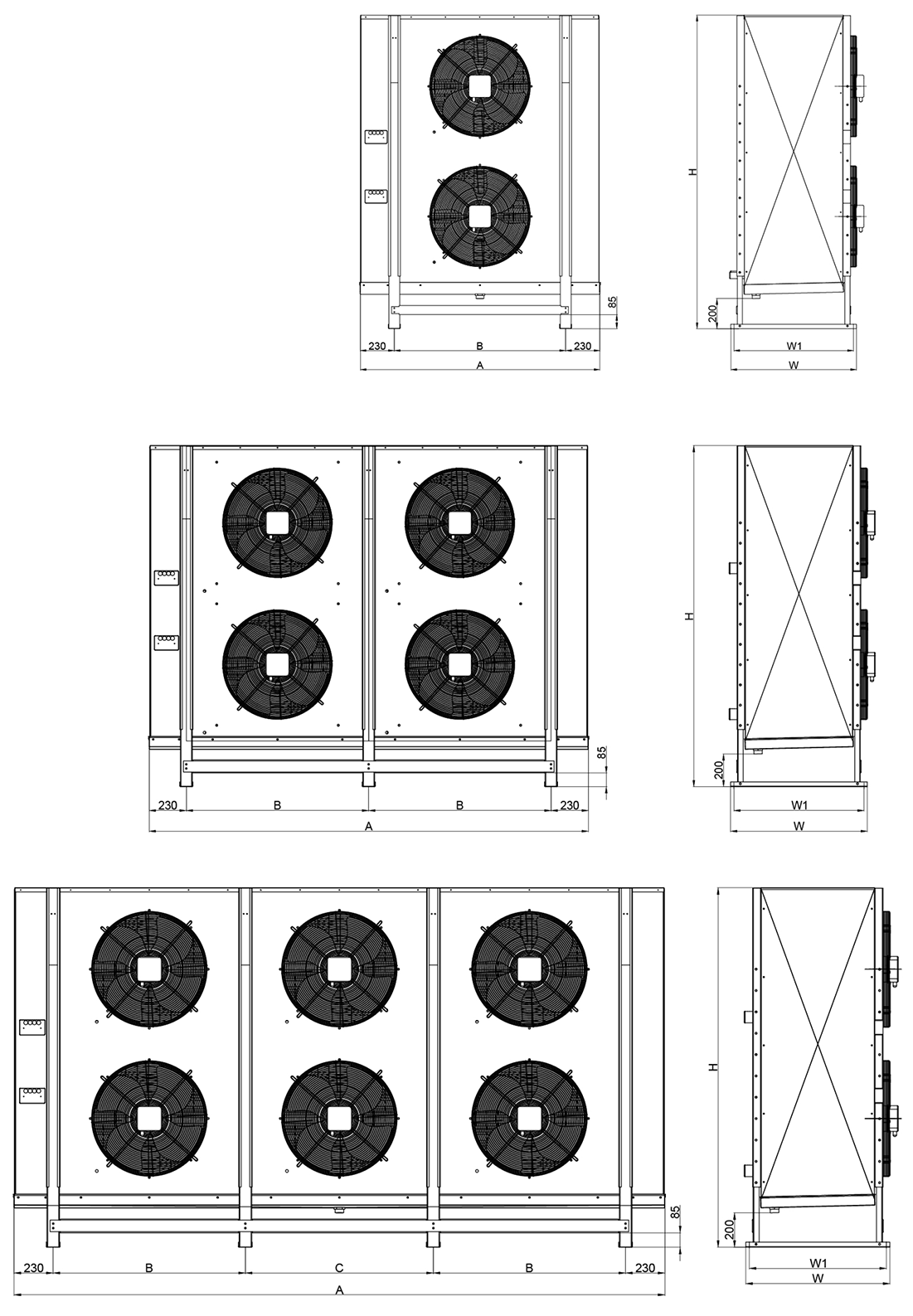

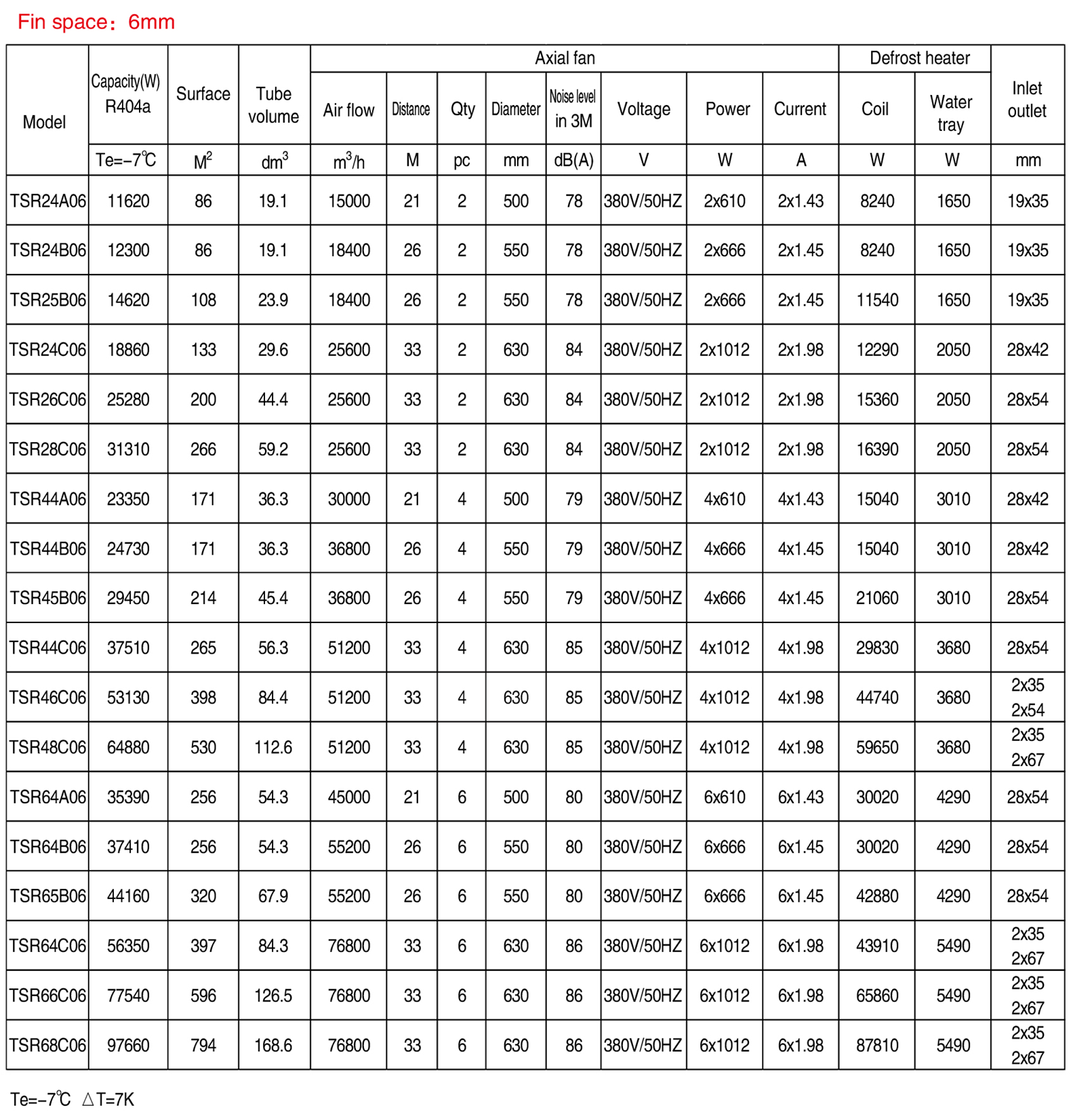

Vertical modular structure, each module is equipped with 2 horizontal blowing fan motors, with a diameter of 500/550/630mm, suitable for different space requirements.

High pressure airflow guarantee

Special profile blades generate high static pressure, ensuring uniform air circulation and achieving rapid cooling and stable room temperature.

Wide temperature range operation

The working temperature range is -40 ℃ to+60 ℃, suitable for harsh environments, and ensures the stability of quick freezing/refrigeration.

Solution to dehumidification problem

High pressure blowing may cause excessive dehumidification or splashing of condensed water, which can be effectively avoided by selecting the suction fan motor (FI option).

Flexible customization service

supports customized non-standard coils, defrosting systems, and fan motors to meet special application needs (such as ultra-low temperature quick freezing).

Modular Scalability

The vertical module design supports on-demand expansion and adapts to diverse scenarios ranging from small rapid cooling rooms to large cold storage facilities.
