The design of THF air cooler products meets but is not limited to the national standard requirements for air coolers. It has undergone strict testing and passed the audit in the laboratory of the National Commercial Refrigeration Equipment Quality Inspection and Testing Center.
Motor assembly: Blade dia,Φ400mm,Power Supply, 380V/50Hz/3Ph or 220V/50Hz
Electrical junction box protection grade: IP54
electric defrost

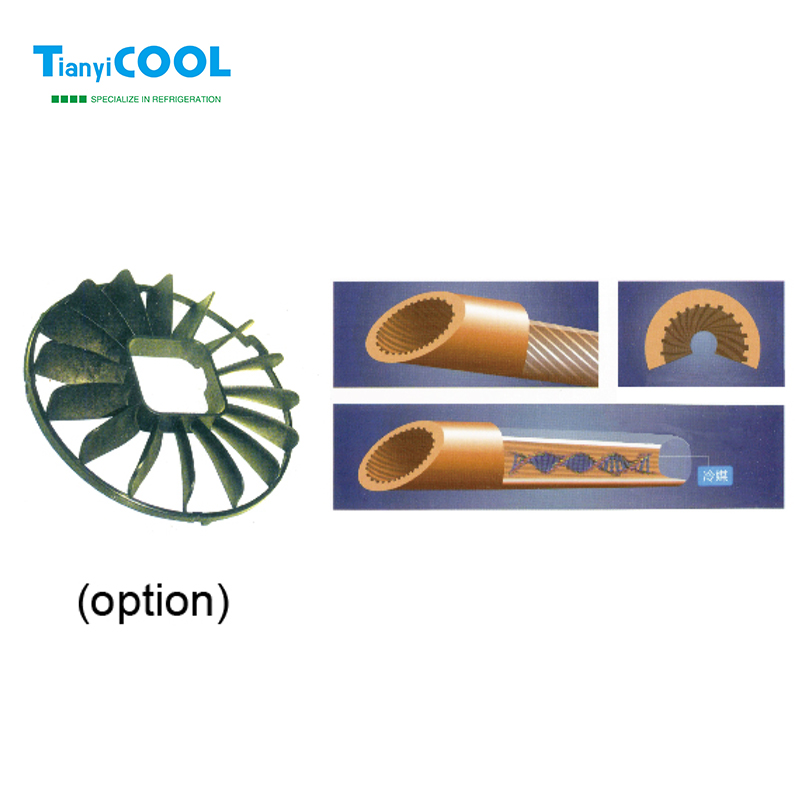

Air nozzle (optional)
Longer air supply distance
Even air distribution in the cold room
TEB/M with 3.5/7mm fin spacing and TEB/L with 4.5/9mm fin spacing to optimize heat exchange efficiency.
electric defrosting heater is standard to adapt to low temperature environment and reduce the influence of frosting on refrigeration.
diameter 200mm, single-phase 230V/50/60Hz, IP42 protection, working temperature ≥40
aluminum casting shell, corrosion resistance, light weight, suitable for industrial use.
Covering the environment from medium-high temperature (≥-12°C) to low tem-perature(≥-25°C)to meet diversified refrigeration requirements.
