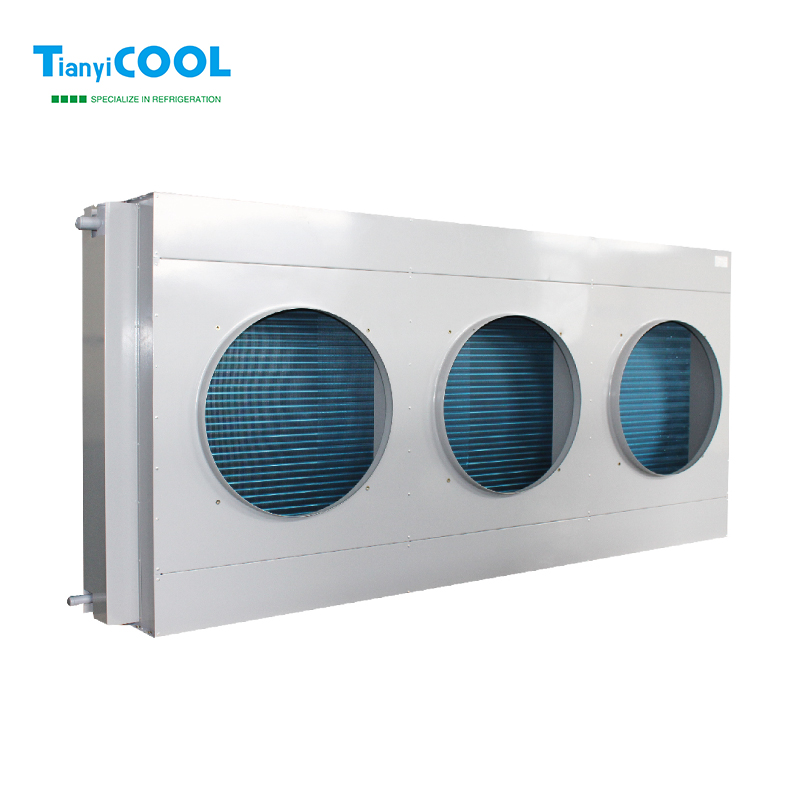

ACV condenser is a high-performance product introduced by QINGDAO TIANYICOOL CO., LTD, especially suitable for small and medium-sized refrigeration scenes with comprehensive consideration of space and efficiency.
The whole series is equipped with high-efficiency coils made of special aluminum fins and 3/8 "copper tubes, which can adapt to the new generation of refrigerants.
special aluminum fin with 3/8-inch copper tube, high-efficiency heat exchange, suitable for a new generation of refrigerant.
2.7 mm fin spacing to ensure air circulation and improve heat exchange stability.
high-quality steel plate painted end plate, high strength and corrosion resistance, extending the life of condenser.
the design of the end plate of the outer frame is reasonable, the assembly is easy, and the installation time and cost are saved.
colors and sizes can be customized to meet the personalized needs of different scenes.
